Electronic Vari- Speed Head
Meehanite castings mainframe with annealed relieved for long term reliability.
X Y Z Hardened & ground with Turcite-B coating guide way

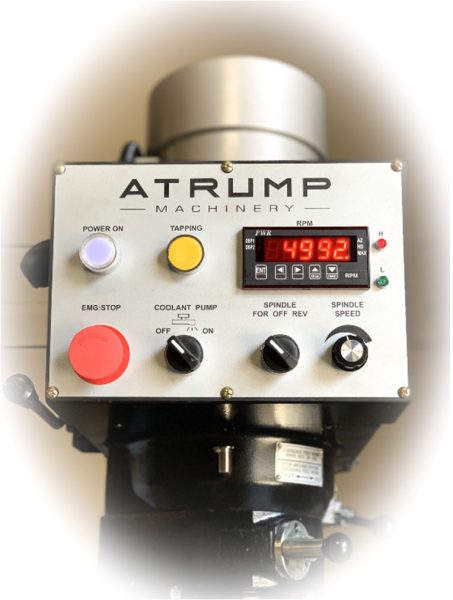

Electronic Vari-Speed Head 3HP spindle motor, R8 / NT30 spindle taper.
Digital output 70-5000rpm spindle speed with Hi/Lo Gears.
Precision APEC class 7 spindle bearing to ensure spindle run out within 0.0002inch.
C7 double nut precision acme lead screws for high accuracy and long lasting.
Chip rubber cover (Front & rear).
Built in Halogen Work Light.
One shot lubrication system.
Easy Tap Function.
| Specification | |
| Table | 10″ x 54″ |
| Longitudinal travel (X-axis) | 36″ |
| Cross travel (Y-axis) | 15.75″ |
| Knee travel (manual) | 16″ |
| Quill travel | 5″ |
| Quill diameter | 3.38″ |
| Spindle nose to table top (D) | 1.96″ to 17.9″ |
| Spindle taper | R8 / NT30 |
| Spindle speed | 70 to 5000 rpm with ( Low / Hi Gears ) |
| Load capacity | 770 Lbs |
| T-slot | 0.62″ x 2.55″ |
| Transmission of spindle & motor | Timing belt |
| Head Swivel (left/right) | +90 / -90 Degree |
| Head tile (front/back) | +45 / -45 Degree |
| Ram travel | 24″ |
| Motor | |
| Spindle motor/max torque | 3 Hp |
| Coolant pump | 1/8 Hp |
| Lubrication pump | One Shot |
| Power requirement | 4KVA 3 Phase 208V – 230V ( max ) |
| Dimension & Weight | |
| Air Requirement | With Optional power draw bar 90-100psi |
| Oil Way Requirement | Mobile Vectra #2 / Way oil #2 |
| Floor space (L x W x H) | 110″ x 100″ x 89″ |
| Net weight | 3080 Lbs |
