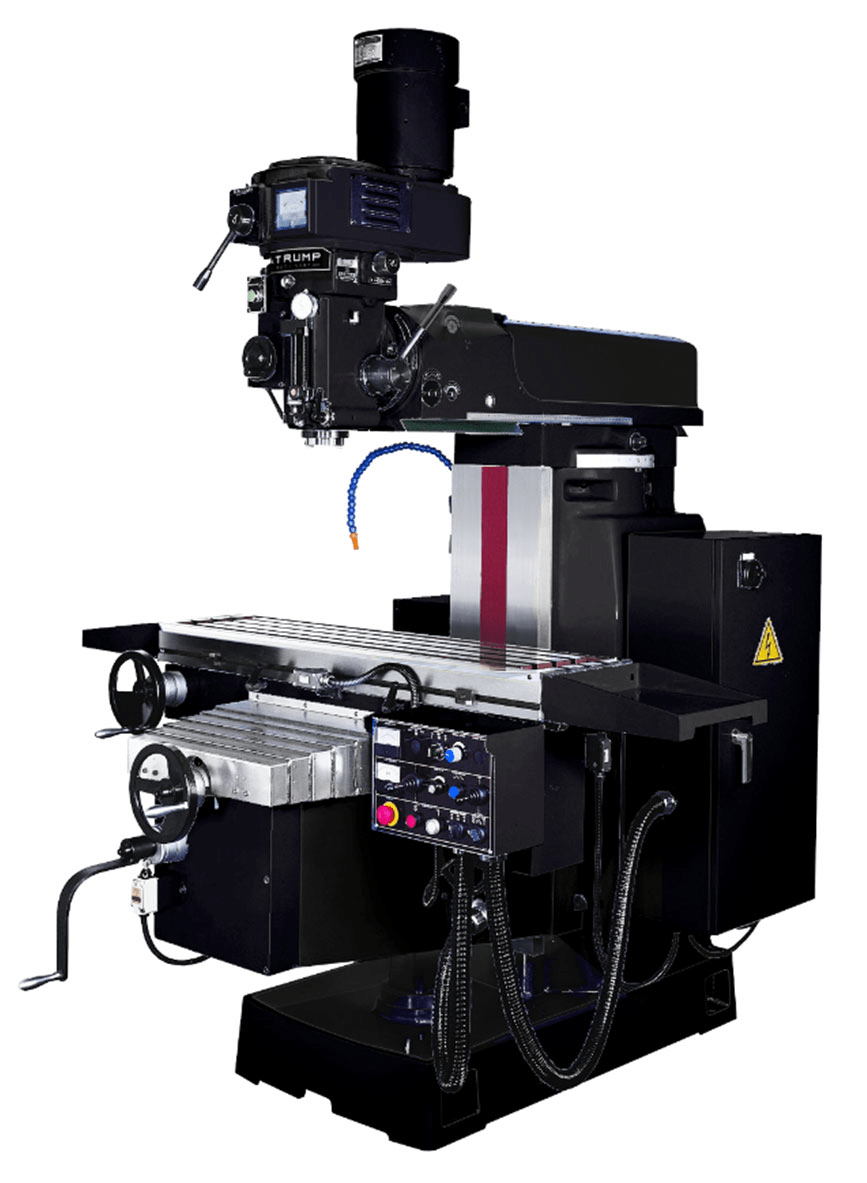

Atrump Machinery has always offered Highest Quality Standards.
Meehanite castings, Box Way design on the Y & Z axes.
C5 double nut precision Ball Screw screws for higfh accuracy and long lasting.
Sevomotor for X & Y axis.
Rapid Up & Down motor
X Y Z Hardened & ground with Turcite-B coating guide way
Mechanical Variable Speed Head 70-3800rpm with Hi/Lo Gears.
Front steel way cover and Rear chip rubber cover.
Built in LED Work Light
Auto lubrication system.
Coolant system with chip pan
Precision P5 class spindle bearing to ensure spindle run out within 0.0002inch.
| Specification | |
| Table | 12″ x 60″ |
| Longitudinal travel (X-axis) | 47.2″ |
| Cross travel (Y-axis) | 18″ |
| Knee travel (manual) | 19.69″ |
| Quill travel | 5.5″ |
| Quill diameter | 4.13″ (105mm) |
| Spindle taper | NT40 |
| Load capacity | 1100 LBS |
| T-slot | 0.71 ” x 2.5″ |
| Transmission of spindle & motor | Timing belt |
| Head Swivel (left/right) | +/- 90 degree |
| Ram travel | 24″ |
| Motor | |
| Spindle motor/max torque | 5HP |
| Coolant pump | 1/8Hp |
| Lubrication pump | Auto Lubrication |
| Power requirement | 10 KVA 3 phase 208V- 230V ( Max.) |
| Dimension & Weight | |
| Air Requirement | With Opt. power draw bar 70-100 PSI |
| Floor space (L x W x H) | 124″ x 76.7″ X 96.4″ |
| Net weight | 5720 Lbs |
